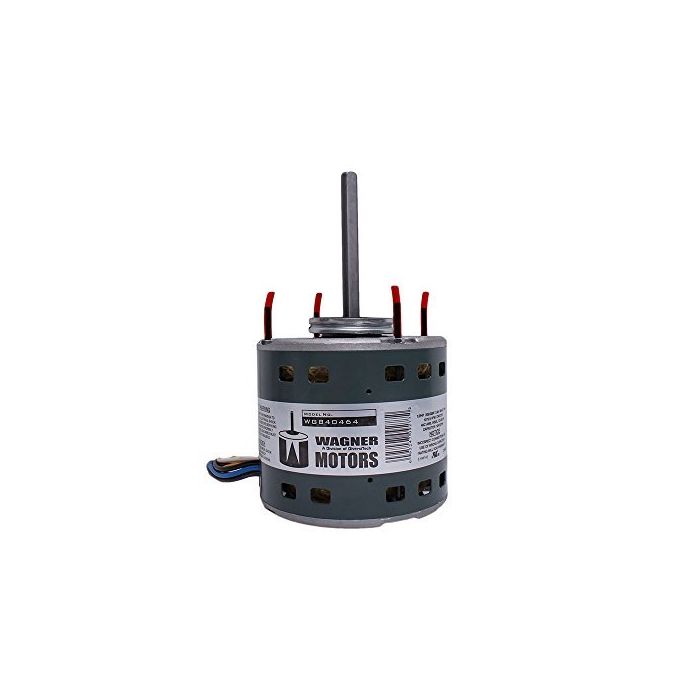

Diversitech WG840465 Multiple Horsepower Condenser Fan Motor


Price:
Sale price$129.99

Shipping calculated at checkout

Description

DiversiTech WG840465 multiple horsepower condenser fan motors are designed and engineered for a long life of moving the air in your heating and cooling system.  With high quality standards and testing during manufacturing, you can be assured of a high quality product.  Multiple horsepower selection reduces inventory and prevents out of stock situations. Whether you need a condenser fan motor for your air conditioner or heat pump, DiversiTech has a motor for it.

WG840465 Motor Features

  • Motor Type - Permanent split capacitor, closed construction
  • Finish - green/grey powdercoat
  • Multiple Horsepower 1/3 - 1/6
  • 2 Speed
  • Voltage - 208/230 VAC 60 Hz
  • 1075 RPM
  • 2.8 / 1.5 Amps
  • Leads - 35-38" long 18 AWG
  • Temperature rating 60°C - 140°F
  • Equipped with automatic thermal overload
  • Insulation Class - B
  • Mounting Options - shaft up, shaft down, belly band
  • Frame size - 48
  • Bearings - Ball
  • Rotation - CW / CCW - electrically reversible
  • Shaft length - 5"
  • Shaft diameter - 1/2" with one flat
  • See specification sheet for competitors cross reference, wiring diagrams, and capacitor selection chart
  • WG840465 cross references to AO Smith model FE6000, Fasco Model D2827, Emerson model 5462, and Smart model SE3465
  • Factory original DiversiTech WG840465 condenser fan motor
