Lancaster 410 H 1 C KIT Big Filter Housing Kit

Lancaster 410 H 1 C KIT

Big Filter Housing Kit

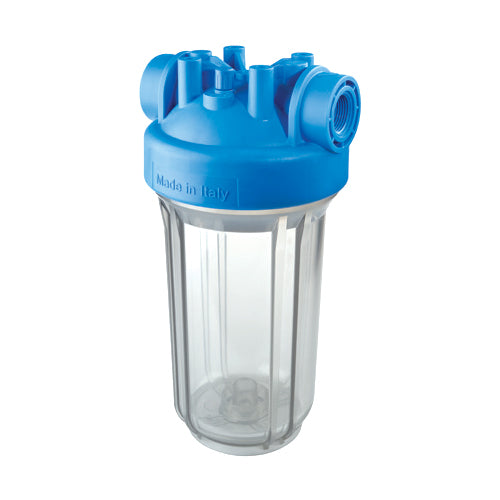

Lancaster’s BIG housings are specifically designed for cartridges with an outer diameter of 4.5” (from 4.0” to 4.5” applicable) and a pressure rating of 120 PSI.

• The housings adapt to any large capacity filtration or heavy duty application. Unique optional features include a drain port at the bottom of the housing and gauge connections at the top.
• Gauges and drain kits are offered separately, as needed for the design of the system.

• The 4.50” OD melt-blow polypropylene cartridge is designed to fit to BIG housings and respond to the most effective heavy-duty sediment filtration requirements, suitable to industrial as well as domestic applications.


• 10" 18 GPM 1" NPT

BIG melt-blown cartridges are made to comply with the most stringent regulations for applications in drinking water. Polypropylene is suitable to many industrial applications due to its wide chemical-physical compatibility to a variety of water-based solutions.

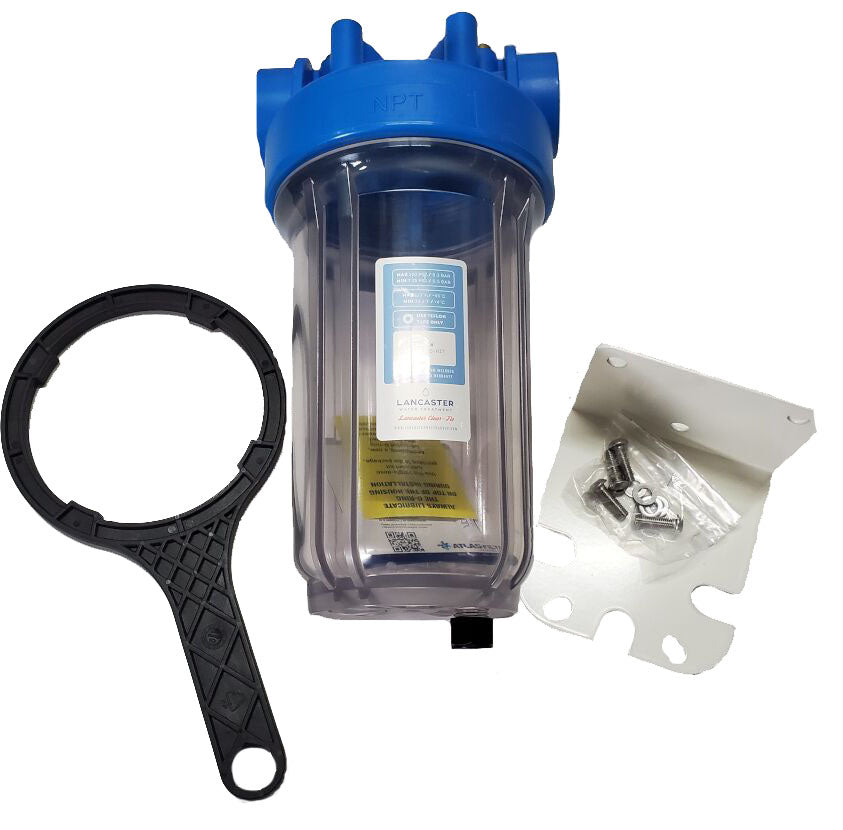

Accessories included: housing wrench , wall mount bracket, and LubriKit for O-ring lubrication.
